HUSQVARNA CEORA™ 546 EPOS™ / RZ 43L / CS4

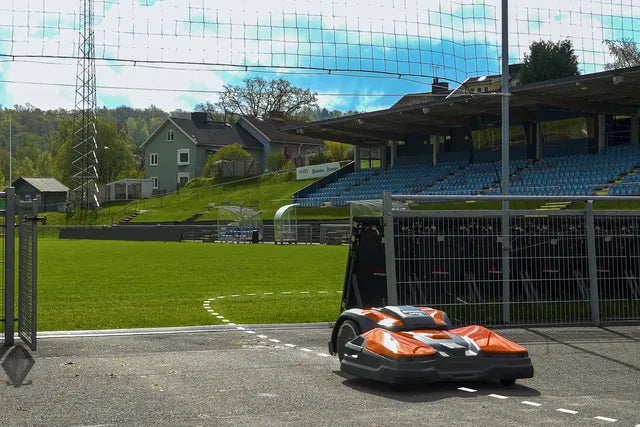

A peak-performance robotic model for large-area mowing, featuring Husqvarna EPOS™ technology. Systematic, high-precision cutting tailored for optimised flexibility within virtual boundaries. Handles very large areas such as multiple football fields, golf courses or large hotel, company or municipal facilities. Delivering a professional result on the turf, operating quietly and with zero emissions while in use.
This CEORA™ configuration is equipped with the drive unit, CEORA™ 546 EPOS™, the tailored-made cutting deck, RZ 43L, and the charging station, CS4. EPOS™ reference station sold separately.
This Item is available only by special order. Please send us a message via our Contact form or call us at (03) 5986 2503
Specifications
- Working area capacity - 48000 m²
- Maximum slope performance at boundary - 15 %
- Maximum slope performance inside installation - 20 %
- Search system - EPOS guidance
- Follow guide - Virtual transport path
- Charging system - Automatic
- Weight - 73 kg
- Product size length - 124 cm
- Product size width - 108 cm
- Product size height - 44 cm
- Colour - Orange,Grey
- Sound level perceived - 72 dB(A)
- Protection index (IP Code) - IPX5
- Battery type - Li-Ion
- Battery capacity - 49 Ah
- Charging current - 12 A
- Typical mow time on one charge - 200 min
- Typical charging time - 150 min
- Mean energy consumption per month at maximum use - 150 kWh
- Working area capacity systematic, pro quality - 48,000 m²
- Working area capacity systematic, pro sports quality -24,000 m²
- Working area capacity systematic, regular quality - 72,000 m²
- Cutting system - 3 discs with 5 pivoting blades
- Cutting height max - 60 mm
- Cutting height min - 10 mm
- Cutting width - 68 cm
- Cutting height adjustment -Electric
- Skid plate - Yes
- User Interface -Professional User Interface/App
- Display - None
- Connectivity - Bluetooth®, Cellular
- App controlled - Husqvarna Fleet Services
- Firmware Update - FOTA
- GPS Theft tracking - Yes
- GeoFence - Yes
- PIN code - Yes
- Alarm - Yes
- Lift sensor -Yes
- Tilt sensor - Yes
- Object detection - Ultrasonic sensor
Husqvarna EPOS Technology
Virtual boundaries through satellite based technology with an accuracy down to 2-3 cm. No physical wires means new level of robustness and flexibility with unmatched possibilities when programming. Makes it possible to define several work areas with different timers and settings. Like to create temporary stay-out zones and pre-set transport paths for a more flexible placement of the charging station.
Husqvarna Fleet Services™
Husqvarna Fleet Services™ gives you the possibility to monitor and control multiple numbers of mowers from your smartphone, tablet or laptop. You can overview your mower’s status or exact location, command them to start, stop or park them all before the storm arrives. Easy to adjust settings and cutting heights. Receive alarms and track the mower’s position in case of theft – from everywhere. 10 years mobile data contract included. Standard on 500-series, optional on X-line models. Husqvarna Fleet Services™ also work together with all other HFS sensor equipped products.
Automower® Connect
Automower® Connect gives you full control of the mower right in your smartphone. You can easily send start, stop and park commands, check and adjust settings. If required also receive alarms and track your mower’s position in case of theft – wherever you are. 10 years mobile data contract included*. Standard on X-line and 500 series, optional for all 300-400 series. *The included Automower® Connect 10 years contract only applies if a third party provides sufficient mobile coverage in the area"

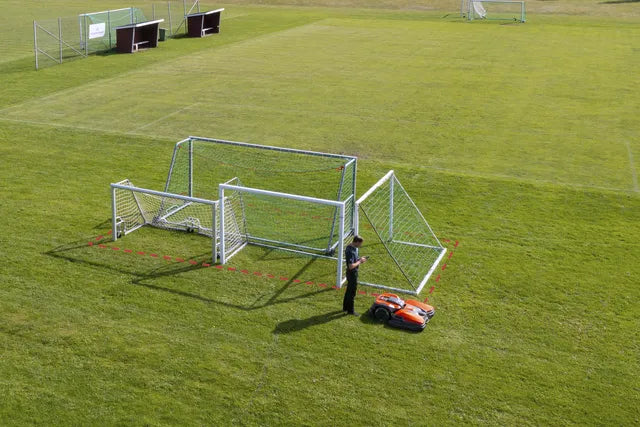

Temporary stay-out zones
Create larger or smaller Temporary stay-out zones, easily activated/deactivated through the mobile app. A practical and flexible way to prevent the robot from working in a newly planted area or during renovation of the surface. Useful if part of the surface needs to be restricted for a temporary event, demo, etc.
Pro user interface
Interface adapted for professional handling, meaning all settings and controls managed remotely through Husqvarna Fleet Services smartphone app or via PC/tablet. Controls on product; status LED indication and START / STOP functionality. Simplifies use for inexperienced users and minimizes serious impact on the product in case of vandalism.

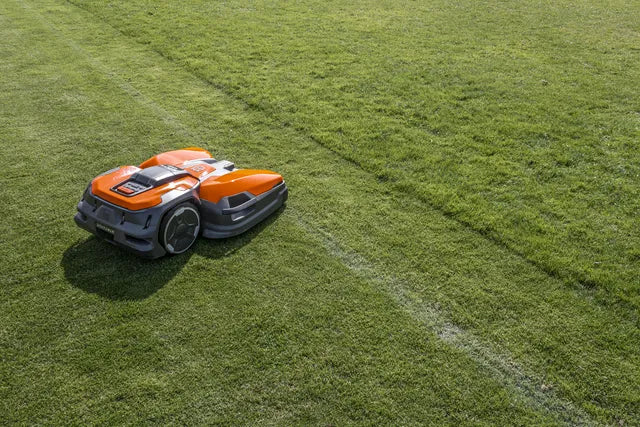

Unique cutting system
Husqvarna Automower® cuts just a little but frequently, which assures a nice and healthy lawn. It is equipped with sharp razor-like blades made of strong carbon steel mounted on a robust cutting disc system. This provides for efficient operation and extremely low energy consumption.
Virtual boundaries
The work area and its virtual boundaries are defined by Husqvarna EPOS technology, using high precision satellite signals (RTK GNSS). No limits in length or passing of hard surfaces and with an accuracy of 2-3 cm.
Reliable installation
Installation with virtual boundaries, through Husqvarna EPOS technology, provides optimal performance in terms of durability. It is completely unaffected by physical impact during aeration or turf repair and eliminates the risk of damaging connectors and wires.
Maintenance point
Define a Maintenance point, an optional parking point on the map, for maintenance such as cleaning and service or storage, loading, etc. that the product automatically accesses on a defined Transport path.
Warning lights
Warning lights with pulsating or solid light to create awareness during operation at night. Reduces the risk of accidents in public work environments.
GPS theft protection
Products equipped with Automower Connect®/Husqvarna Fleet Services™ immediately begin tracking its GPS position and send notifications to your devices. Makes the installation extra safe and minimizes the risk of theft.
Balance control
For silent and trouble-free operation it automatically detects imbalance in the cutting system. Imbalance could be caused by missing, double mounted or damaged blades.

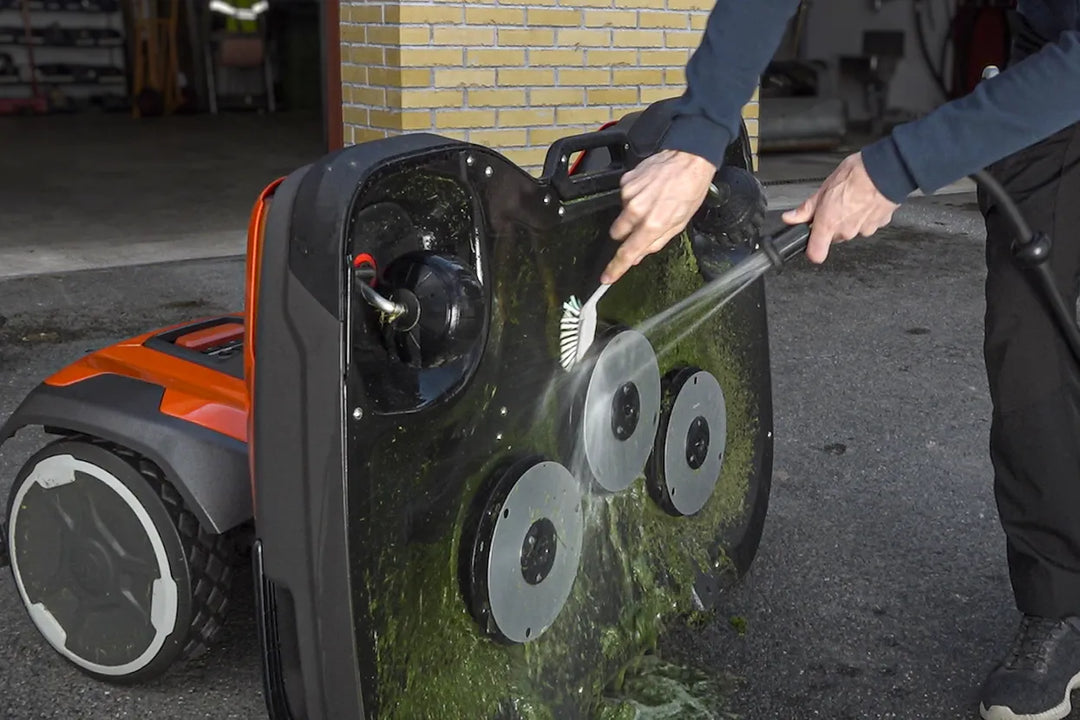

Service position
The cutting deck is easily moveable into vertical Service position, to facilitate regular cleaning and maintenance.

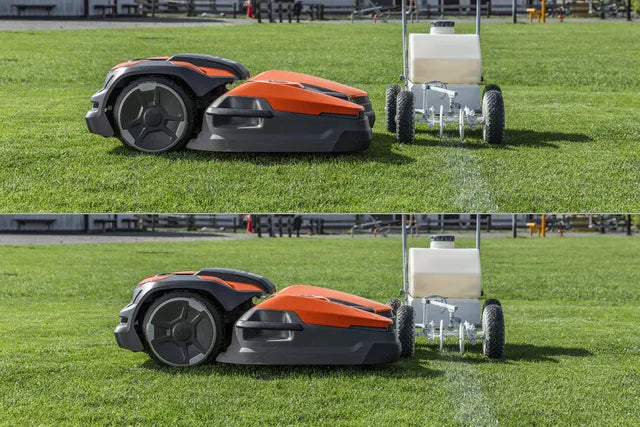

Electric height adjustment - PATENTED
The cutting height is swiftly adjusted by the electrically operated height adjustment, easily accessible from the main menu or via the Automower® Connect app.
FOTA - Firmware-Over-The-Air
Possibility to make software updates automatically, over the air, via the Automower® Connect app to enable new features and updates.
appDrive - driving by remote
Make the product easy to steer by using a smart phone. Use appDrive when defining an EPOS map, or when driving the product between areas without need of carrying.

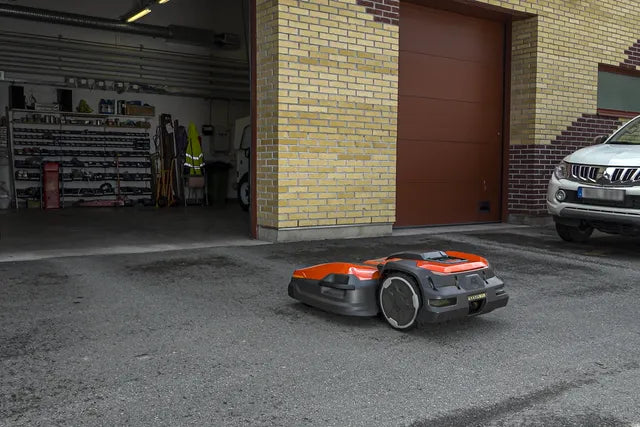

Transport paths
Define transport paths from the charging station location to all work areas, including the transport path to the Maintenance point. Provides the opportunity for great flexibility in the placement of the charging station.
EPOS guidance
Automatically calculates the most efficient route to and from the charging station’s docking point. It will vary its route on the lawn to avoid unpleasant tracks.
Precise area management
Define several work areas with different time schedules and cutting height settings. Provides the opportunity for highly adapted and tailored care of a site with several work areas.
Object Detection/Avoidance
For safety and minimized downtime, built-in sensors using ultrasonic technology assist the product to detect or avoid objects. The Detection mode reduces the speed and makes collisions softer; the Avoidance mode reduces speed and stops before the object.

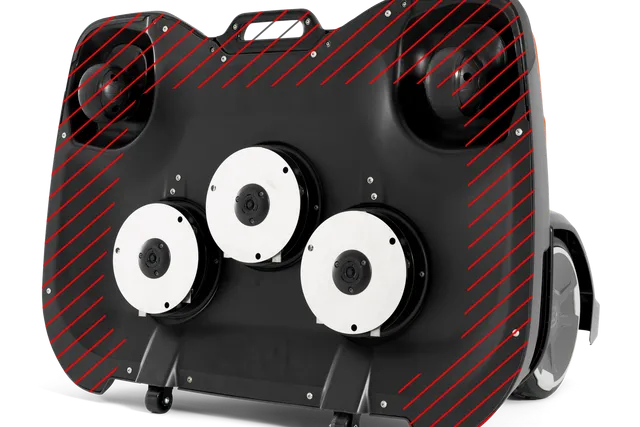

Cutting deck with Protection zone
The Protection zone is the area from the cutting deck's outer edge to the blade discs. The Protection zone minimizes the risk of accidents.
