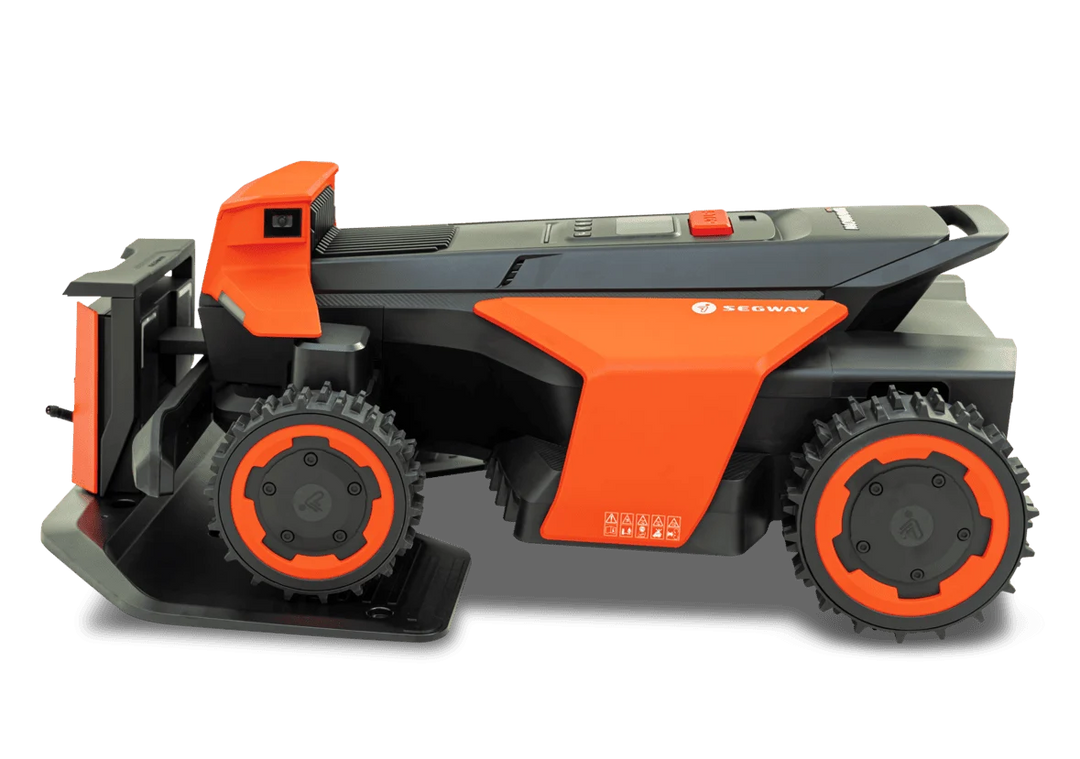

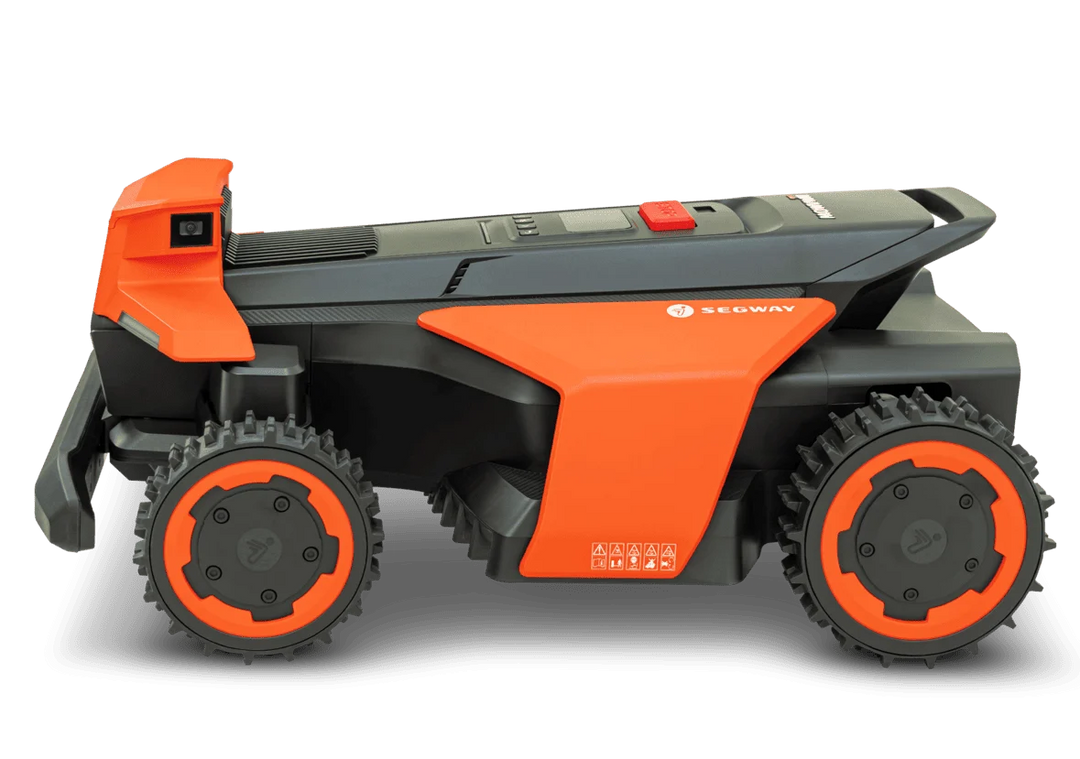

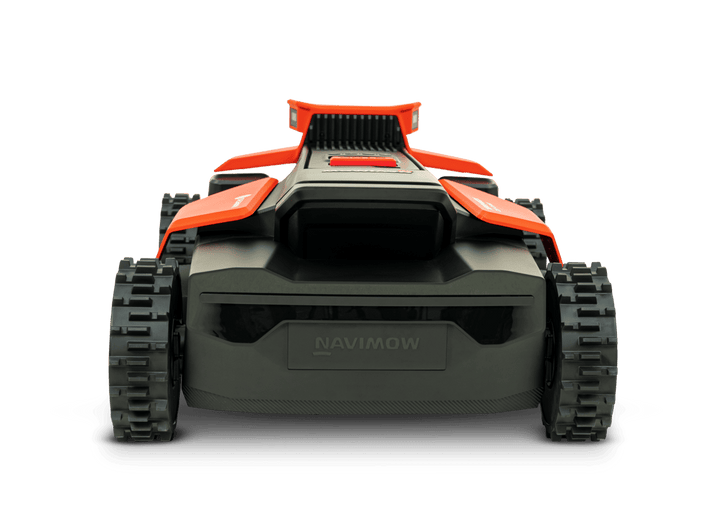

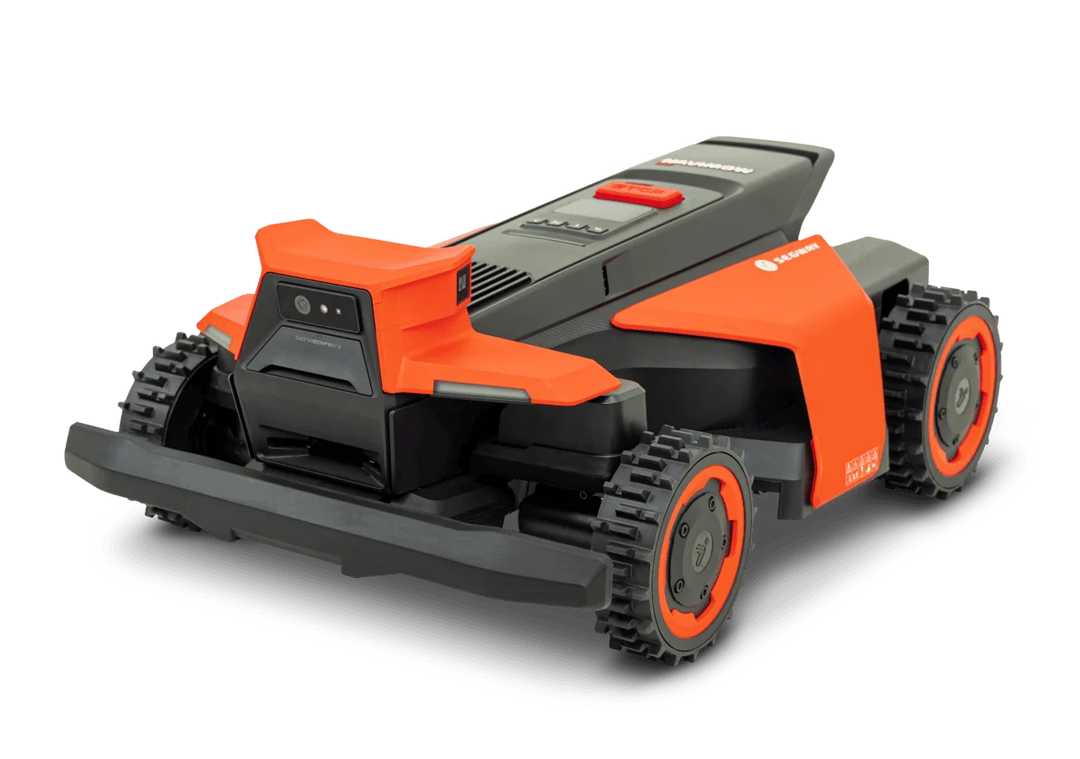

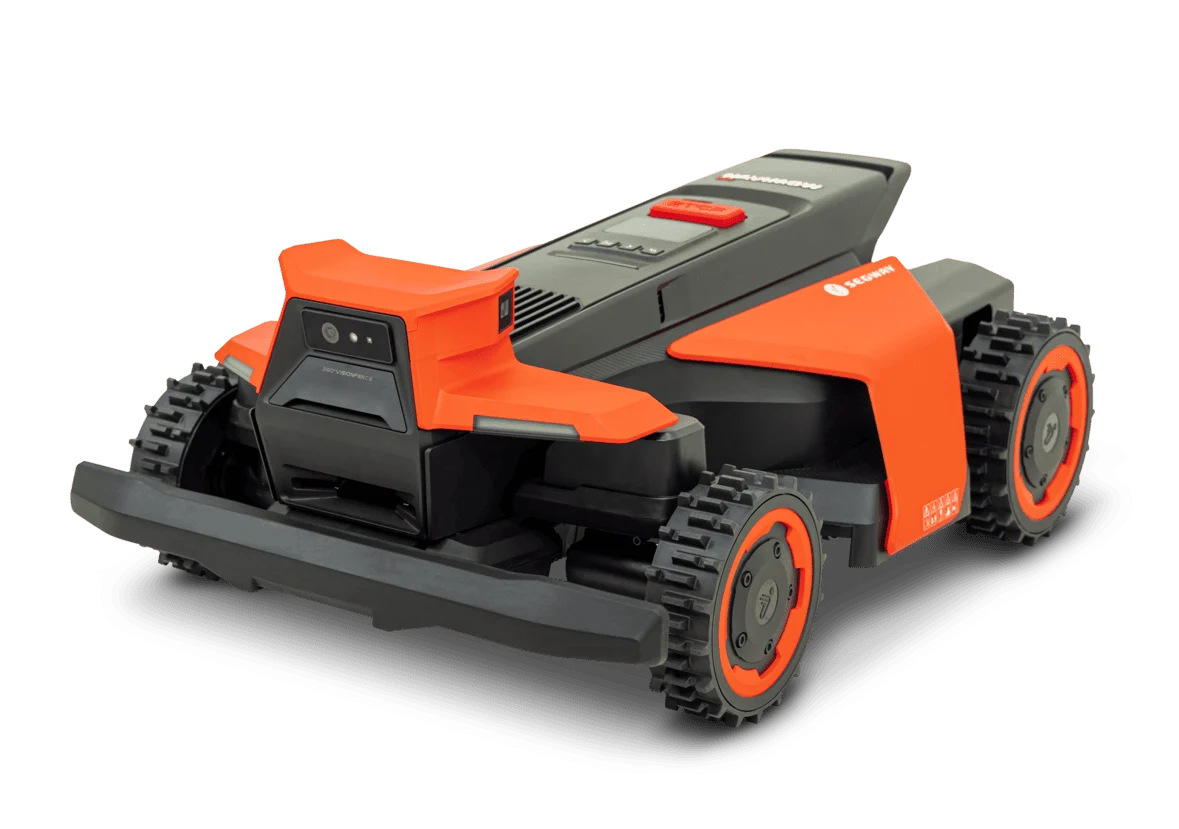

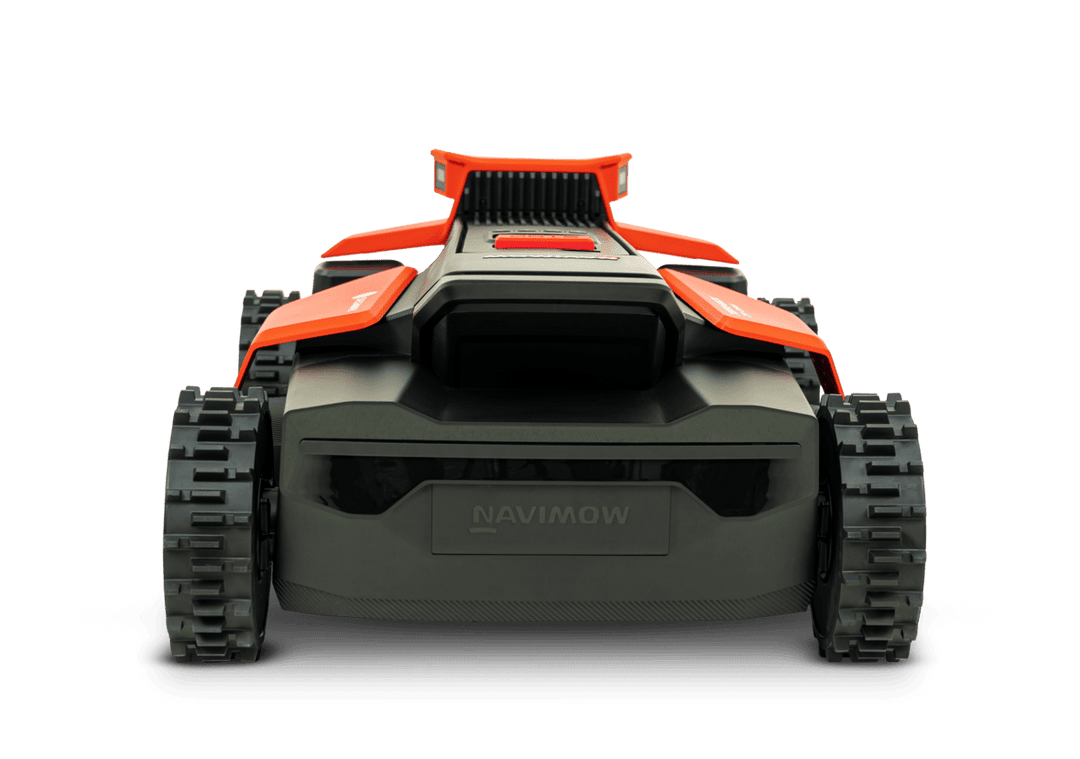

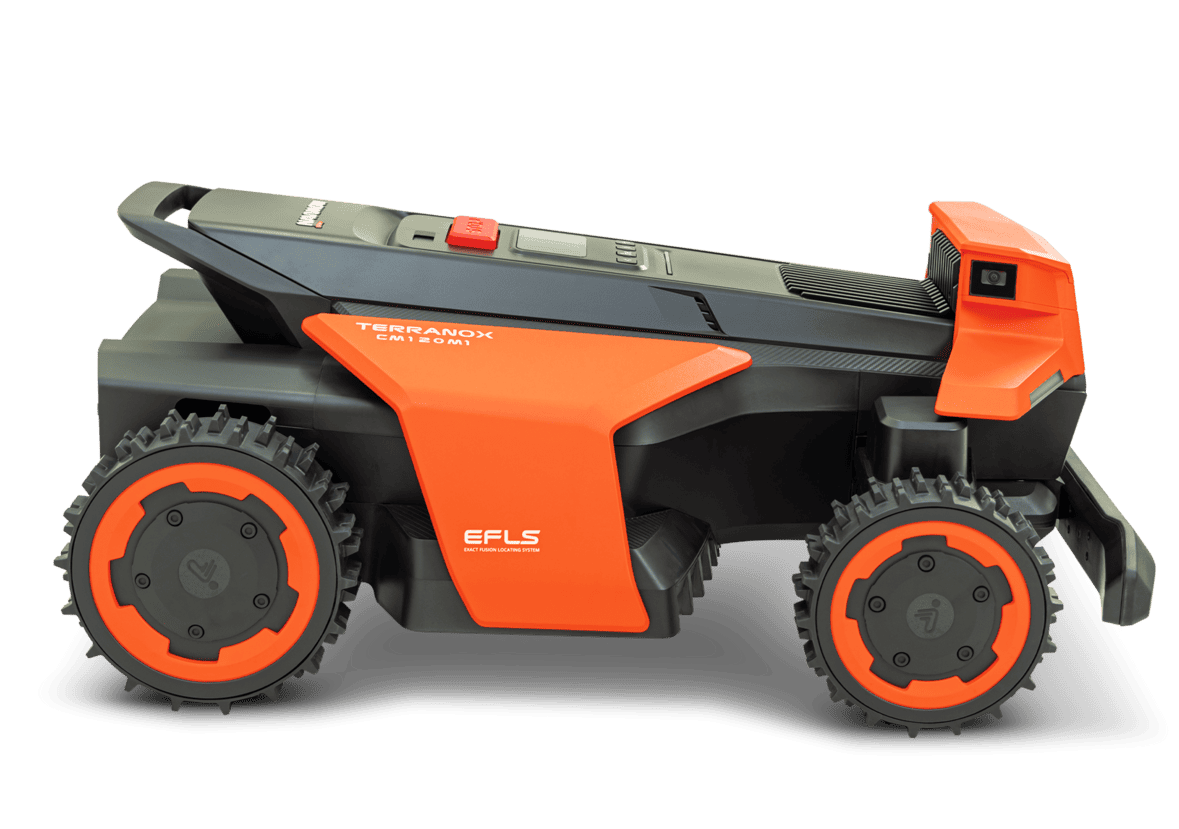

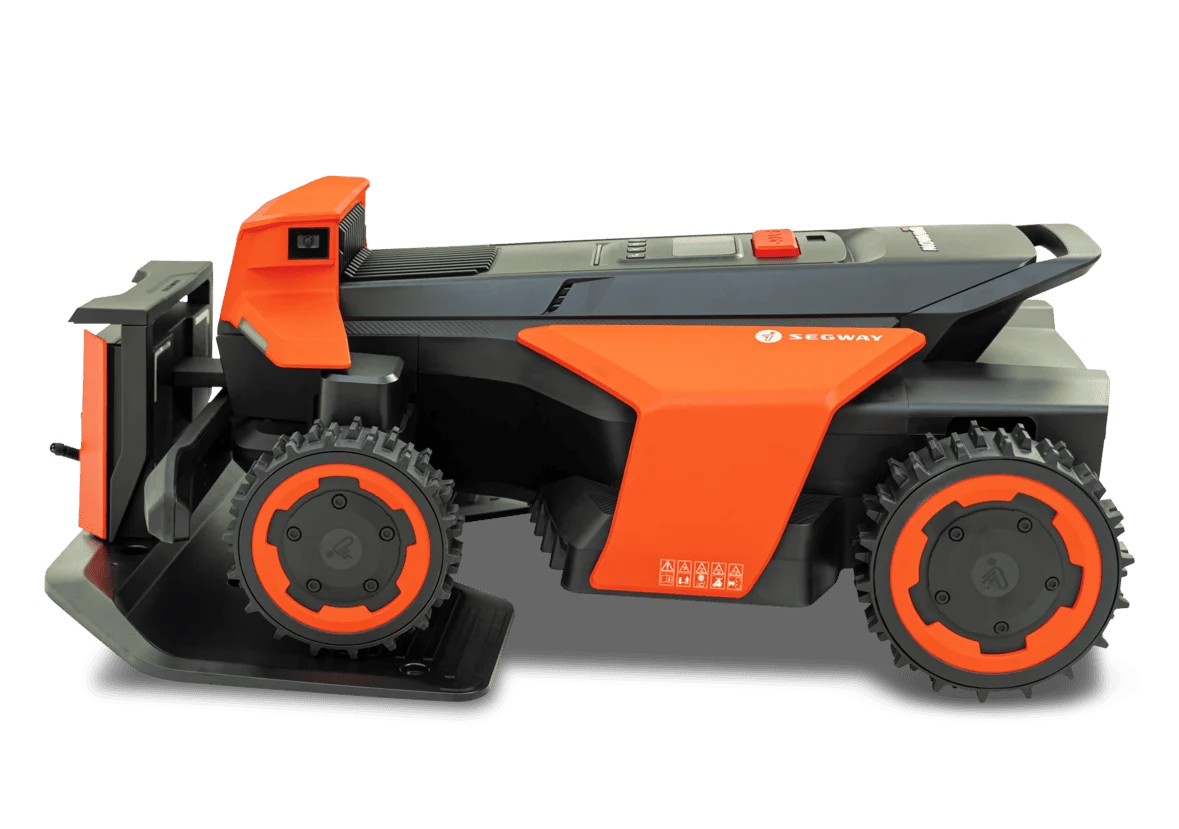

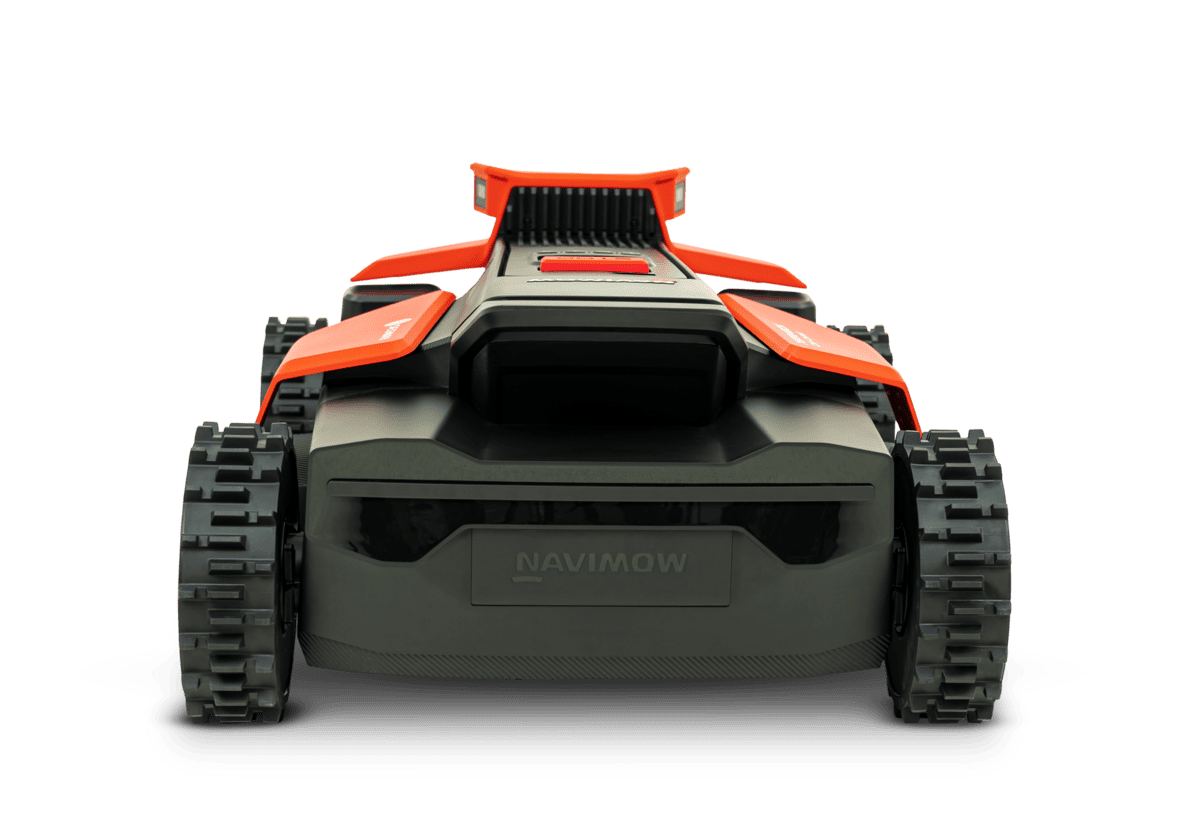

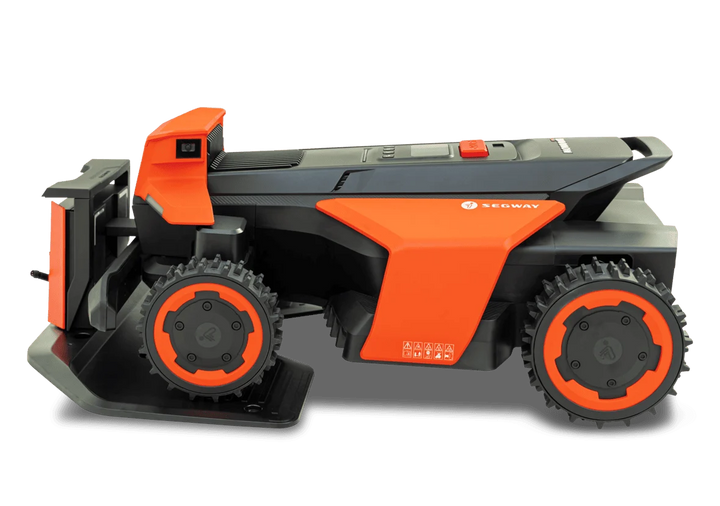

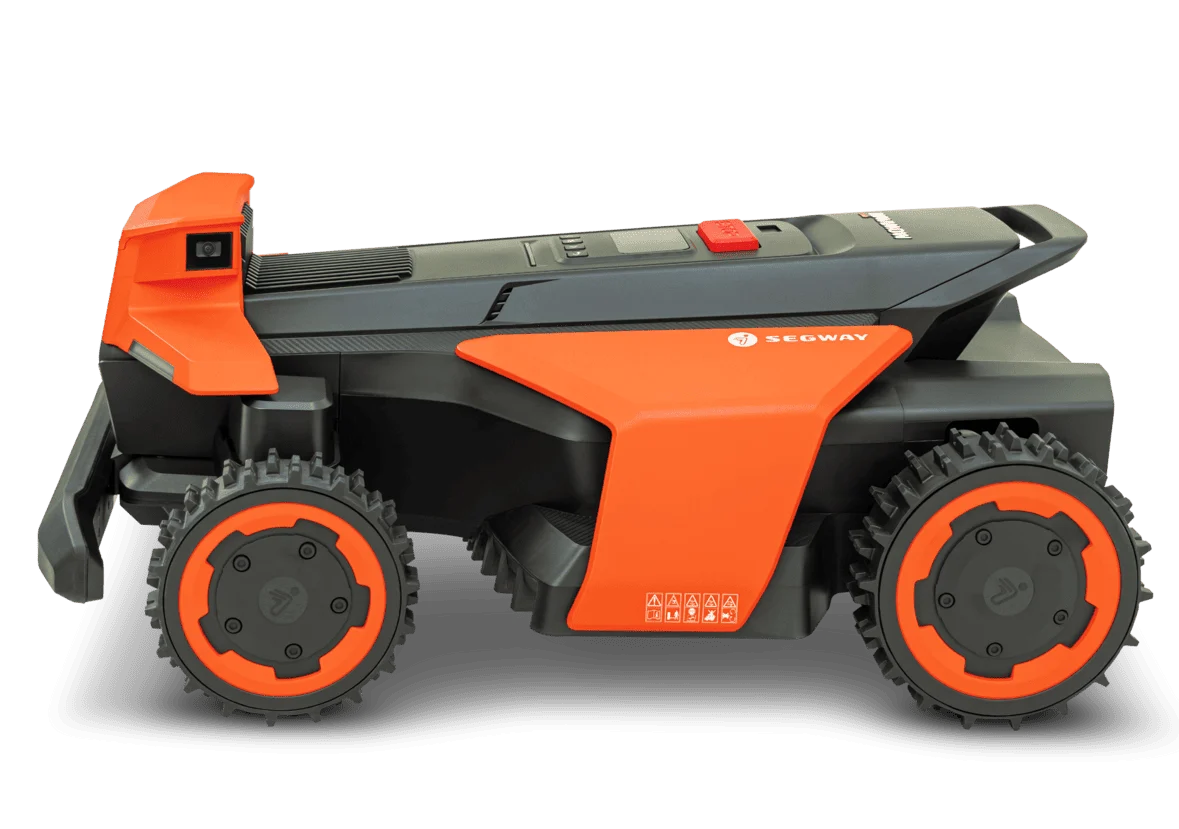

The Segway Navimow Terranox CM240M1 Commercial Robot Lawn Mower is the high-capacity Terranox model for large-scale professional mowing up to 24,000 m². It combines autonomous wire-free navigation, AWD mobility, 360° obstacle sensing and connected fleet controls for sites where mowing consistency and labour efficiency matter every week.
From expansive estates and campuses to parks and sports-turf applications, the CM240M1 is designed to execute repeatable mowing plans across serious ground while operators retain digital visibility over mapping, work status and machine condition.
EFLS™ NRTK is the foundation of the CM240M1’s autonomous operation. Network RTK, 360° vision and VIO are combined to keep the mower accurately positioned across large sites without traditional perimeter-wire installation. Where Network RTK is available, the manufacturer describes antenna-free deployment; LRTK can be used as a fallback where NRTK coverage is unavailable.
A 430 mm cutting system with dual motors, dual deck and 12 blades is designed for sustained commercial productivity. Automatic cutting-height control from 20 mm to 95 mm gives operators flexibility across different managed turf requirements while preserving a consistent programmed finish.
The CM240M1 uses AWD to maintain traction across large and varied sites and is rated for slopes up to 84% (40°). That terrain capacity broadens the type of commercial spaces that can be considered for robotic mowing beyond simple flat fields.
The VisionFence™ system uses 360° RGB cameras with ToF sensing to give the mower continuous environmental awareness. Visual sensing complements its precise location system, allowing the robot to react to objects and changing conditions rather than relying exclusively on a static mapped route.
Virtual boundaries, mapping, systematic mowing, multi-zone management and connected status controls are supported through the Segway Navimow ecosystem. OTA updates allow software improvements to be delivered without replacing mower hardware.
Commercial oversight is handled through NavimowFleet™. Segway Navimow describes monitoring of machine location, work performance and technical status, together with app and web-portal tools for assigning work, editing maps and managing fleets remotely. This is central to the CM240M1’s value on multi-machine or multi-area operations.
The CM240M1 carries a 25 Ah battery. Its Australian specification lists a 180-minute charging time, while official manufacturer commercial data rates mowing runtime at 180 minutes and mowing speed at up to 1.0 m/s. Automatic charging supports repeated autonomous work cycles.
Choose the CM240M1 when maximum area coverage is the priority. Compared with the CM120M1, it doubles the rated maximum mowing area to 24,000 m² and adds the battery capacity and mowing speed required for the largest Terranox applications while retaining the same core navigation, vision and fleet-management architecture.
Talk to Robotic Lawnmowers Australia about the Segway Navimow Terranox CM240M1 for high-capacity commercial robotic mowing. Our team can help assess large managed sites, terrain, mowing zones and operational requirements to determine whether the CM240M1 is the right fit.
| Brand | Segway Navimow |
|---|---|
| Model | Terranox CM240M1 |
| Series | Terranox Series |
| SKU / Product Code | SNUAA1206040004 |
| Recommended / Maximum Mowing Area | 24,000 m² |
| Drive System | AWD |
| Maximum Slope | 84% (40°) |
| Navigation / Localisation System | EFLS™ NRTK |
| Positioning Technology | NRTK + 360° Vision + VIO |
| Vision System | 360° RGB cameras + ToF |
| Obstacle Avoidance | VisionFence™ |
| Cutting System | Disc and swing-back blade; dual motors, dual deck, 12 blades |
| Cutting Width | 430 mm |
| Cutting Height | 20–95 mm |
| Cutting Height Adjustment | Automatic |
| Battery Capacity | 25 Ah |
| Mowing Runtime | 180 minutes (manufacturer commercial specification) |
| Charging Time | 180 minutes (Australian listing) |
| Mowing Speed | Up to 1.0 m/s |
| Time to Mow Maximum Area | Up to 24,000 m² within 72 hours under manufacturer test conditions |
| Automatic Charging | Yes |
| Virtual Boundary | Yes – wire-free |
| Auto / Assist Mapping | Yes |
| Systematic Mowing Pattern | Yes |
| Multi-Zone Management | Yes |
| Connectivity | Bluetooth, Wi-Fi & Cellular |
| App Control | Yes – Navimow app |
| Commercial Fleet Management | NavimowFleet™ via connected platform; location, performance and technical-status monitoring |
| Weather Adaptive | Yes |
| OTA Updates | Yes |
| IP Rating | IP66 |
| Noise Level | 68 dB(A) |
| Dry Weight | 30 kg |
| Dimensions | 850 × 610 × 351 mm (W × H × L) |
| In-App Live Chat Support | Yes |
