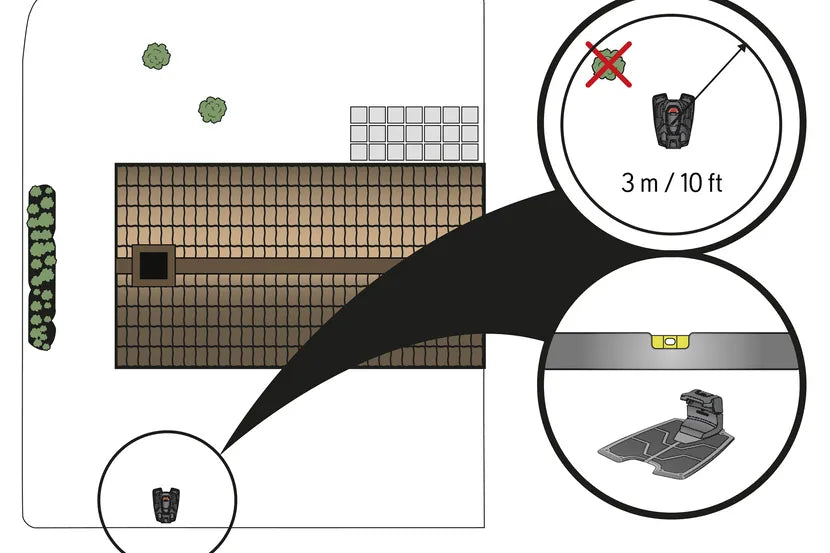

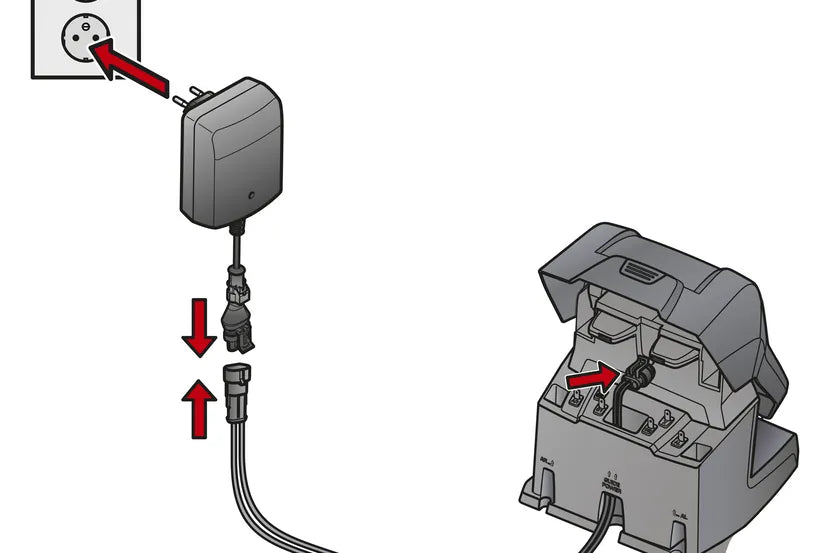

Locate the best place for the charging station. This needs to be placed on a flat level surface with an open area in front of it. Connect the power supply’s low voltage cable to the charging station and the power supply, then connect the power supply to a 100-240 V wall socket.

Plug in the charging station, then place the mower in it and turn on to charge. You will be able to see in the app that the mower is charging.

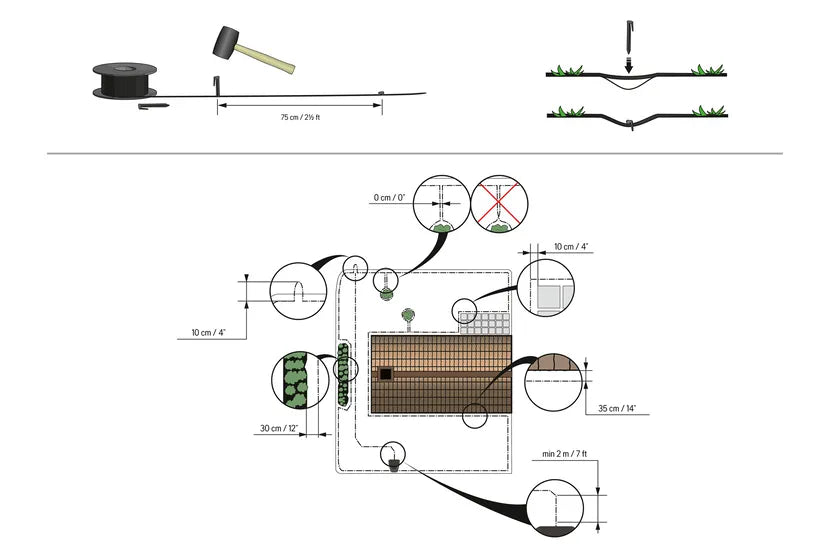

Lay the boundary wire along the edges of the lawn so that it forms a loop around the work area. Use the cardboard ruler, which you can find inserted in the top of the mower box, to measure the optimal distance to lay the wire around the edge of your lawn and when creating islands around obstacles, like a tree.

Lay the wire:

• 10 cm (4 in) from obstacles that are lower than 1 cm (0.4 in) e.g. a pathway
• 30 cm (12 in) from obstacles that are between 1 - 3.5 cm (0.4 - 1.4 in) high e.g. a flowerbed
• 35 cm (14 in) from obstacles that are higher than 3.5 cm (1.4 in) e.g. a wall

Make a loop with the wire at the point where the guide wire will later be connected, to ensure enough wire to connect it to the guide wire. Attach the wire to the ground with the stakes enclosed in the installation kit.From the charging station lay the guide wire across the lawn to the point on the boundary loop where the connection will be made. Avoid laying the wire at tight angles. See video for further information.

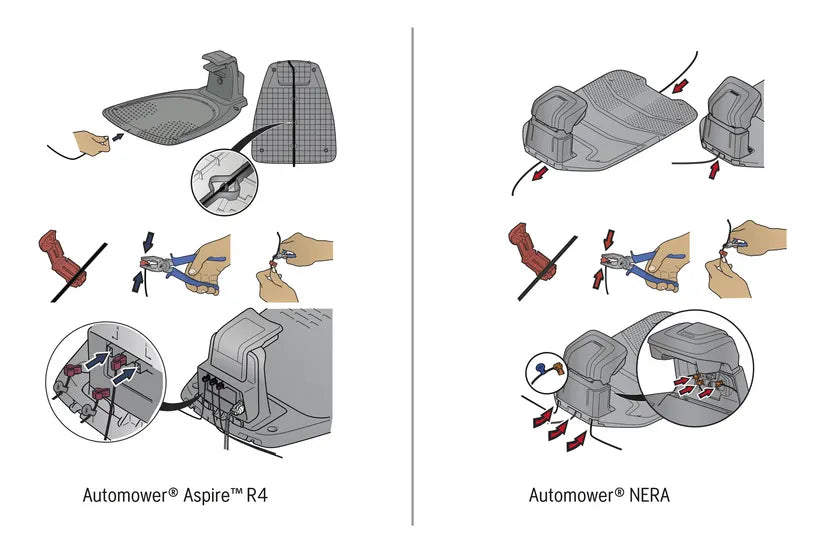

The guide wire leads the robotic lawn mower to remote areas of the lawn and helps the mower to quickly find the charging station. Lay the guide wire under the charging station with at least 1 m (3.3 ft) straight out in front of the charging station.Open the connectors and lay the wire ends in the recesses on each connector.Press the connectors together using a pair of pliers. Then cut off any surplus boundary wire: 1-2 cm (0.4 - 0.8 in) above the connectors.Press the connectors onto the contact pins marked L (left) and R (right) in the charging station. It is important that the right-hand wire is connected to the right-hand contact pin, and the left-hand wire to the left-hand pin. Then fasten the connector to the contact pin marked GUIDE on the charging station.

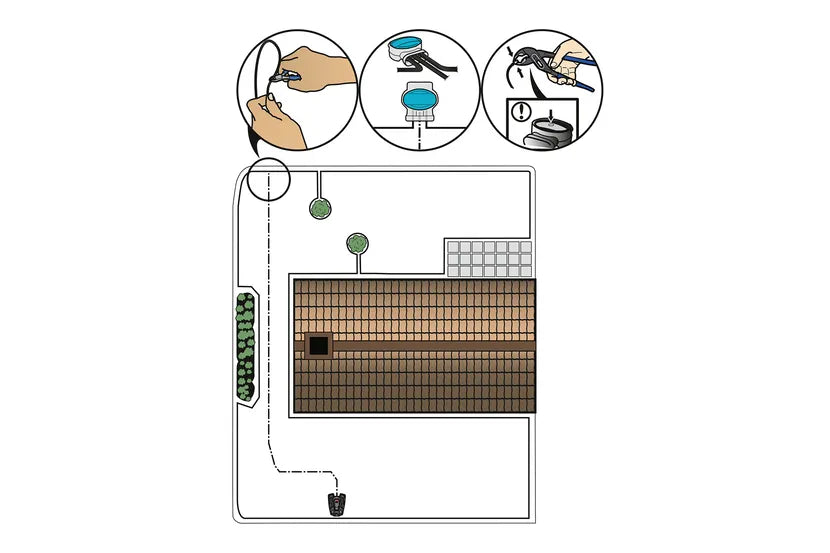

Cut the boundary wire with wire cutters at the centre of the loop that was made in Step 5. Connect the guide wire to the two ends of the cut boundary wire using the accompanying coupler. Press the coupler completely together using a pair of pliers. A green sold light should be showing on the charging station. See the different light status and what they indicate below:Green solid light - Good boundary loop signal.Green flashing light - ECO mode is activated.Blue flashing light - Malfunction in the boundary loop.Red flashing light - Malfunction in the charging station’s antenna.Red solid light - Fault in the circuit board or incorrect power supply in the charging station. The fault should be rectified by an authorised service technician.

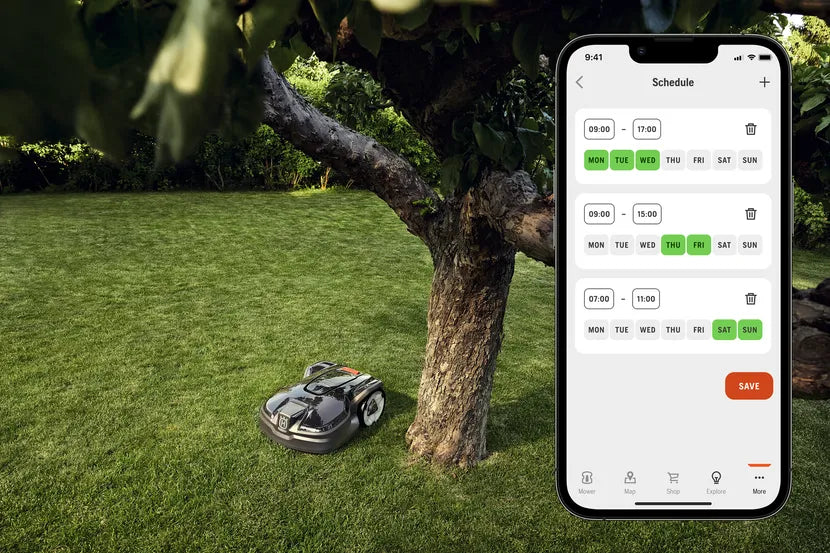

Now you are ready to start mowing your lawn. Turn your mower on and enter your pin code. The app will provide additional tips and information to help you optimise your mower, saving you time and helping you achieve the perfect lawn 24/7.
